Make British Thornton, England
Model AD 050 Log Log
Notes

1.This has the patented Thornton trigonometrical scales.
2. For an article on the "differential" trig scales see the article by John Mosand (Two Unusual Types of Trigonometric Scales) by John Mosand in the Journal of the Oughtred Society, Vol. 9, No. 1, Spring 2000.
3. A copy of the instructions for use can be found here.

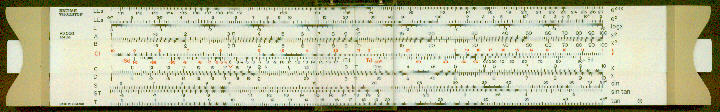

Front view

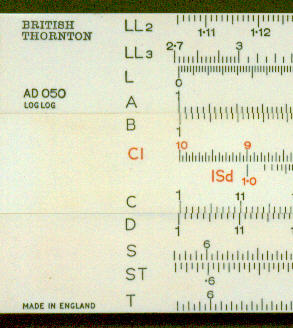

Detail - front left

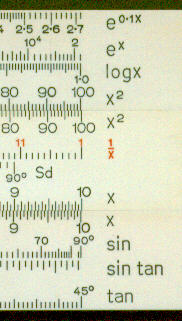

Detail - front right
Detail -front - inverse differential sines and tangents.
Detail -front - differential sines and tangents.
Manufacturing date >1967. Year British Thornton was formed.
Length 10"
Material Plastic, Simplex
Scales LL2,LL3,L,A[B,C1,ISd,ITd,Td,Sd,C]D,S,ST,T
Gauge points p: 3.14: A,B,C1,C,D
s: C
m: C
Cursor Plastic
Hair lines One
