Make Unknown, United Kingdom
Model Four faced, multi purpose rule.
1. This rule is undated but it believed that the use of slides longer than the rule went out of use around 1750.
2. The rule has scales for calculation (squares, cubes and trigonometry) on the front of the slides and scales for alcohol on the reverse of the slides, which are not reversible.
3. In total the rule has 31 scales.

This rule is from the collection of M Taylor.

Face 1

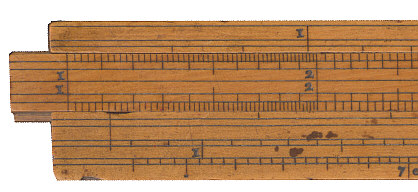

Face1- front left

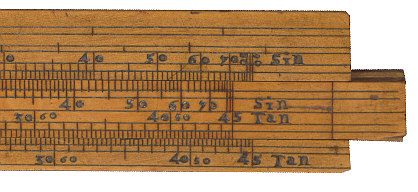

Face2 -  front right

Face 2

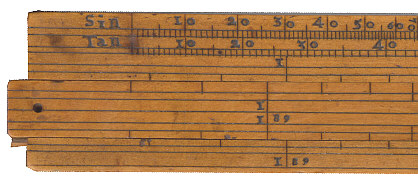

Face1- front left

Face2 -  front right

Face 1

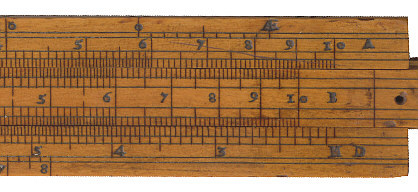

Face1- front left

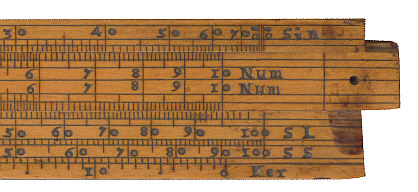

Face2 -  front right

Face 1

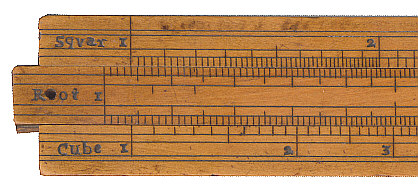

Face1- front left

Face2 -  front right

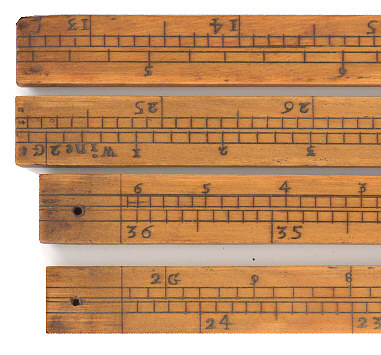

Reverse of scales - left end

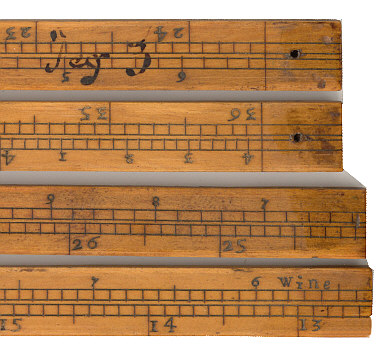

Reverse of scales - right end
Manufacturing date Type of rule suggests a 1750 date.
Length 12"
Material Boxwood
Scales See above
Cursor None
