Make Pickett, USA
Model N4p-T Vector type - Log-log dual base speed rule
Notes

1. This rule has exactly the same arrange of scales as the N4-T. This is not always the case with other "paired" Pickett rules.

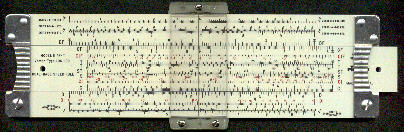

Front view
Detail - front left

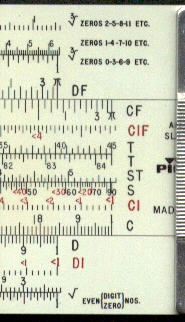

Detail -front right

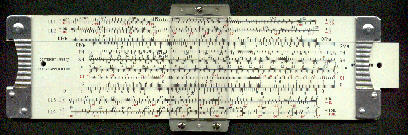

Back view

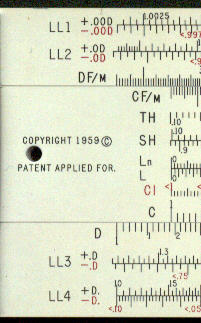

Detail -back left

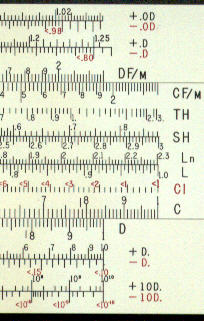

Detail - back right
Manufacturing date c 1970
Length 5"
Material Aluminium
Scales 3 No. 1, 3 No. 2, 3 No.3 , DF [CF, CIF, T1, T2, ST, S,  CI, C] D, DI, No. 1,   No. 2
LL0-LL00, LL1-LL01, DF/M [CF/M, TH, SH1, SH2, Ln, L, CI, C] D, LL2-LL02, LL3-LL03

I have used the "standard" designations rather than those on the rule. Pickett labels their log-log scales from LL1 to LL4.

Cursor Plastic
Hair lines Single hair lines
Documentation Complete
Condition Mint
