Make Graphoplex, France
Model Electro - 650
Notes

1. This is one of four Graphoplex rules I now own. Not for nothing did Peter Hopp say of Graphoplex "Made extremely high quality slide rules".
2. The rule is used for electrical calculations with scales for motor/dynamo efficiency and voltage drop.

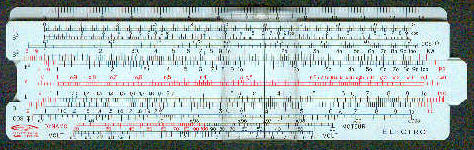

Front view

Detail - scale labelling

Detail - scale labelling
Manufacturing date c 1965
Length 12.5 cm
Material Plastic
Scales L,K,Cos,A[B,CI,C/ST,S,T,C]D,Cos,Dyn-Mot,Volt
Cursor Plastic
Hair lines Four hair lines
Documentation Complete original documentation (leaflet)
Condition Mint
