Make Keuffel and Esser, USA
Model 4081-3
Notes

1. This is one of the most popular K&E rules on Ebay.
2. My quess, from the range of scales and its popularity, is that this was a "work-horse" rule
3. The rule has C, D, CF, DF, CI, DI and CIF scales - a conbination which in the hands of a skilful user can reduce the number of slide movements and consequently increase the speed of use.

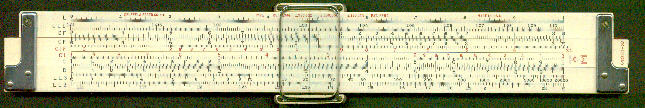

Front view

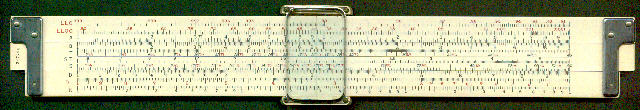

Back view

Detail - front left

Detail - back left


Manufacturing date c 1960
Length 10"
Material Plastic
Scales LL0, LL00 A [B, T, ST, S] D, DI, K
L,LL1, DF [CF, CIF, CI, C] D, LL3, LL2
Cursor Plastic
Hair lines One
