Make Pickett, USA
Model N500ES Dual base log-log
Notes

1. This rule is one of the range in "Eye-saver yellow" promoted by Pickett as being less tiring to use.
2. The rule is one of a pair with a 5" rule (N300 ES). Whilst the aim would have been to use familiarity with one rule to facilitate use of the other, in fact there are quite a few differences in the scales.
3. The rule is of all metal construction.

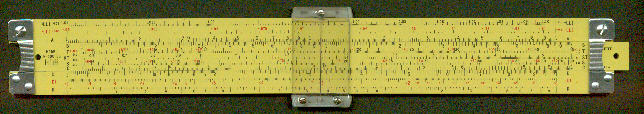

Front view
Detail - left front view

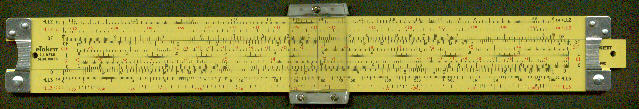

Back view
Detail - left back view
Manufacturing date 1962 (marked on rule)
Length 10"
Material Metal
Scales LL1, LL01, A [B, T, ST, S, C] D, DI, K
LL2, LL02, DF [CF, CIF, L, CI, C] D, LL3, LL03
The log-log scales for values less than 1.0 are marked -LL1 etc on this rule.
Cursor Plastic with metal screws
Hair lines One
Documentation None
Condition Mint
